How to Choose the Right High-CFM HVLS Fan for Your Needs

What is CFM?

CFM stands for "cubic feet per minute." It is a standard unit used to measure a fan's airflow, representing the total volume of air the unit can move in one minute. In simple terms, the CFM rating indicates a fan's air-moving capacity.

A high CFM rating means a larger volume of air is moved within a given timeframe, which is ideal for expansive spaces such as factories, warehouses, hangars, and agricultural facilities.

Unit conversion tip: 1 CFM ≈ 1.7 m³/h. When dealing with international clients, be sure to clearly distinguish between CFM (imperial system) and m³/h (metric system) to avoid confusion.

The Unique Logic of HVLS Fans: Theoretical CFM Isn’t Everything

The criteria used to evaluate CFM for small or residential fans **do not apply directly to HVLS fans**.

HVLS fans feature large-diameter blades with an aerodynamic profile and an optimized pitch angle. They rotate at low speeds, pushing a massive column of air toward the floor; upon reaching the ground, this airflow spreads out horizontally, creating a gentle, wide-reaching breeze.

Although their rotational speed is low, the total volume of air moved is immense. The maximum CFM figures published by some manufacturers are often based on ideal laboratory conditions. For real-world installations, what truly matters is the **airflow coverage at ground level and its reach**, rather than the theoretical CFM value listed on a technical data sheet.

Two HVLS (High-Volume, Low-Speed) fans with the same nominal CFM rating can differ by more than 20% in their effective coverage area. This depends on the aerodynamic profile of the blades, their pitch angle, and the presence of winglets (fins at the blade tips).

 **Key point when comparing HVLS fans:** Prioritize the **CFM/W ratio (energy efficiency)**, effective coverage area, and noise level, rather than focusing solely on the maximum CFM value.

### Five key criteria for selecting a high-airflow HVLS fan

#### 1. Matching airflow to the size and volume of the space

The volume and height of a facility determine the required air circulation.

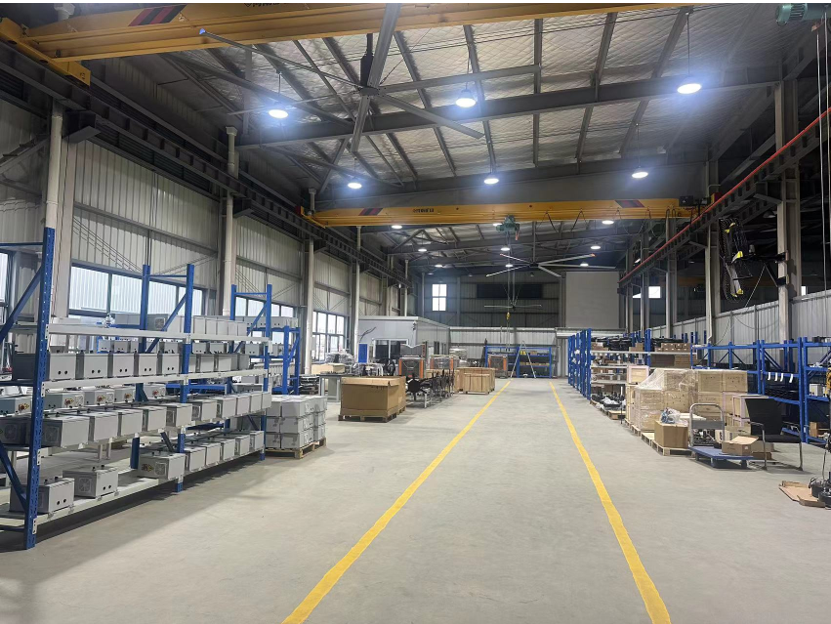

- Large, open spaces—such as factories, warehouses, hangars, or livestock facilities—require high airflow. For HVLS fans, evaluate the coverage area first, rather than just the raw CFM figure.

General figures serve only as a reference. To obtain a customized airflow calculation for your project, please contact our engineers for a free on-site assessment.

#### 2. Energy efficiency (CFM/W) is more important than raw CFM

CFM can be increased simply by boosting motor power. Some manufacturers increase power solely to achieve impressive CFM figures, which results in significantly higher electricity consumption.

In industrial facilities, HVLS fans often operate for many consecutive hours. The **CFM/W ratio (airflow per watt)** is the primary performance indicator; moving more air for the same amount of electricity indicates a superior design and leads to substantial long-term energy savings.

#### 3. Balancing airflow and noise

High-speed fans generate high-pitched noise due to their high rotational speed (RPM). In contrast, modern, high-quality HVLS fans utilize optimized airfoil profiles, specific blade angles, and winglets. These features enable a high volume of airflow while reducing noise caused by turbulence.

If your workspace requires a quiet environment, you should evaluate both the airflow volume and the decibel levels.

#### 4. Fan structure determines airflow behavior

- Axial fans: provide localized airflow; they are not the best choice for covering large areas.

- Centrifugal fans: designed for high-pressure applications and ductwork; they are inefficient for general air circulation in large facilities.

- **HVLS fans**: feature a large diameter and low rotational speed. They generate a broad, enveloping airflow, making them ideal for factories, stadiums, grain silos, and farms. Their performance should be measured by their effective coverage area.

#### 5. The difference between laboratory CFM ratings and real-world performance

CFM values ​​listed in product catalogs are measured in a laboratory setting at zero static pressure. In actual installations, however, structural beams, machinery, and piping can obstruct the airflow....flow, which is why the effective airflow is always lower than the nominal figure.

The advanced blade design of HVLS fans reduces these airflow losses.

### The real benefits of HVLS fans: cooling, humidity control, and energy savings

HVLS fans move large volumes of air, and their value extends far beyond simply generating a refreshing breeze:

1. **Cooling in summer**: The broad, gentle airflow accelerates the evaporation of sweat, reducing the perceived temperature by 5 to 8 °C.

2. **Elimination of thermal stratification**: In winter, when operated in reverse, they push the warm air that has accumulated near the ceiling back down. This decreases the temperature difference between the floor and the ceiling, thereby reducing heating costs.

3. **Humidity control and improved air quality**: Continuous circulation disperses moisture and vapors, inhibiting the growth of mold. This is ideal for grain storage facilities, dairy farms, and textile workshops.

4. **Synergy with HVAC systems**: When used in conjunction with air conditioning or heating systems, they reduce energy consumption for climate control by 25% to 30%.

Summary: A rational perspective on CFM for HVLS fans

CFM is a useful metric for measuring air displacement capacity. However, for industrial buildings, warehouses, and large facilities, **it should never be the sole selection criterion**.

When choosing an HVLS fan, evaluate a range of factors: energy efficiency (CFM/W), blade aerodynamics, effective coverage area, noise level, and motor performance. You should also consider ceiling height, building structure, and operational conditions—rather than simply comparing figures from a technical datasheet.

 When selecting the appropriate size for an HVLS (High-Volume, Low-Speed) fan, consider the following factors:

Space Size: Larger spaces require larger fans to ensure effective air circulation. Typically, a 24-foot (approx. 7.3-meter) fan can cover an area of ​​up to 20,000 square feet (approx. 1,858 square meters).

Ceiling Height: Higher ceilings generally require fans with larger diameters to achieve optimal performance.

General Guideline: For spaces exceeding 20,000 square feet, fans with a diameter of 20 to 24 feet (approx. 6.1 to 7.3 meters) are recommended; for smaller spaces of around 10,000 square feet (approx. 929 square meters), fans ranging from 12 to 16 feet (approx. 3.7 to 4.9 meters) are more suitable.

CorTec’s HVLS fans feature specialized aerodynamic optimization, delivering superior airflow distribution compared to conventional HVLS fans. For more information, please contact CorTec: [www.cortecfan.com]
