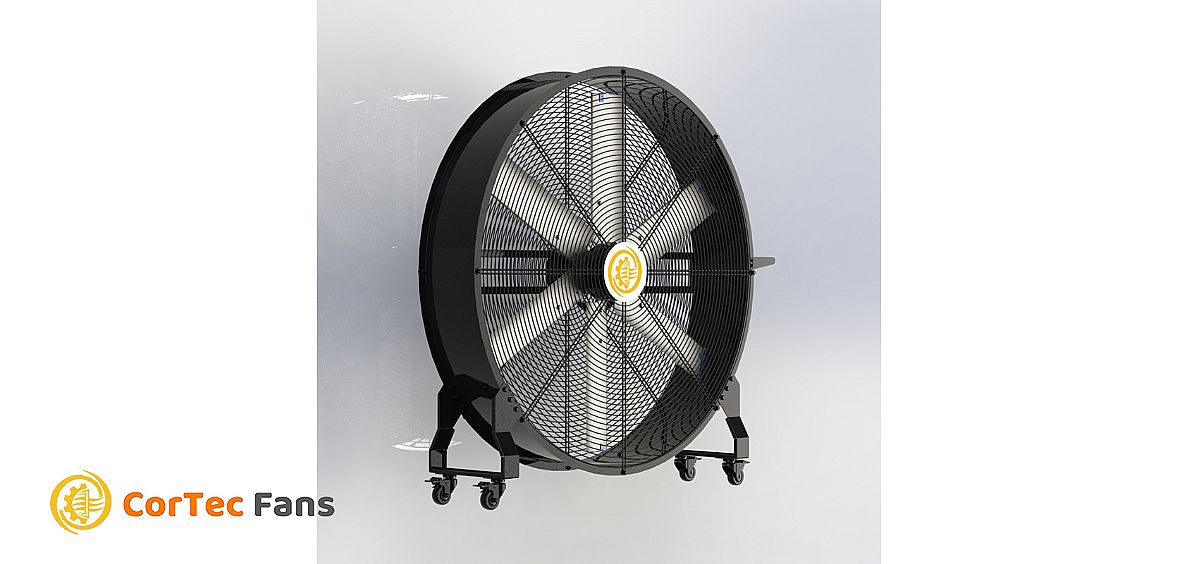

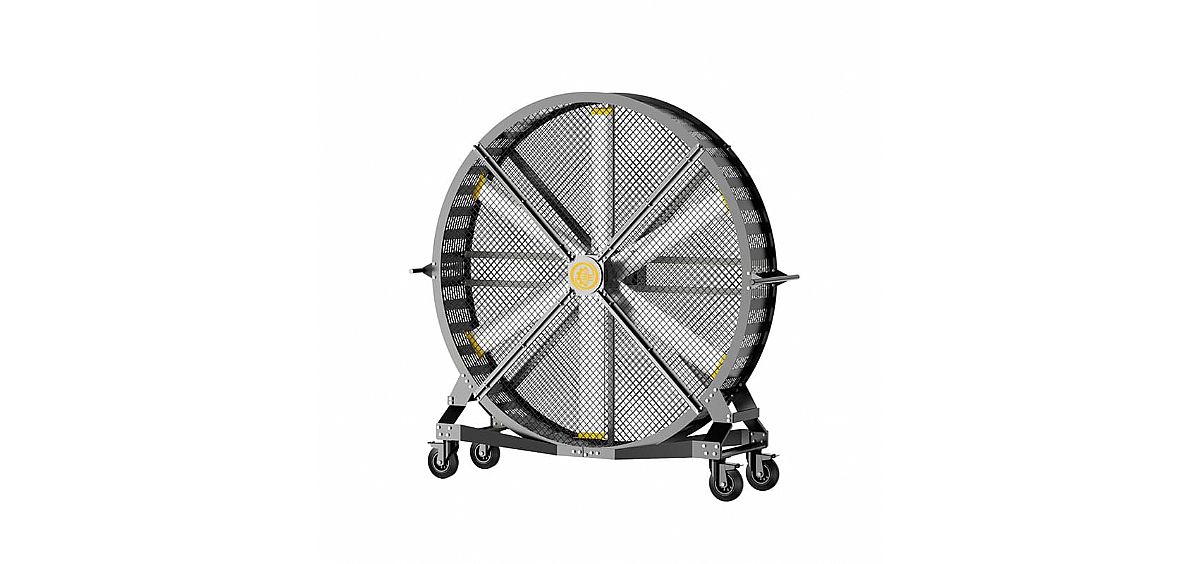

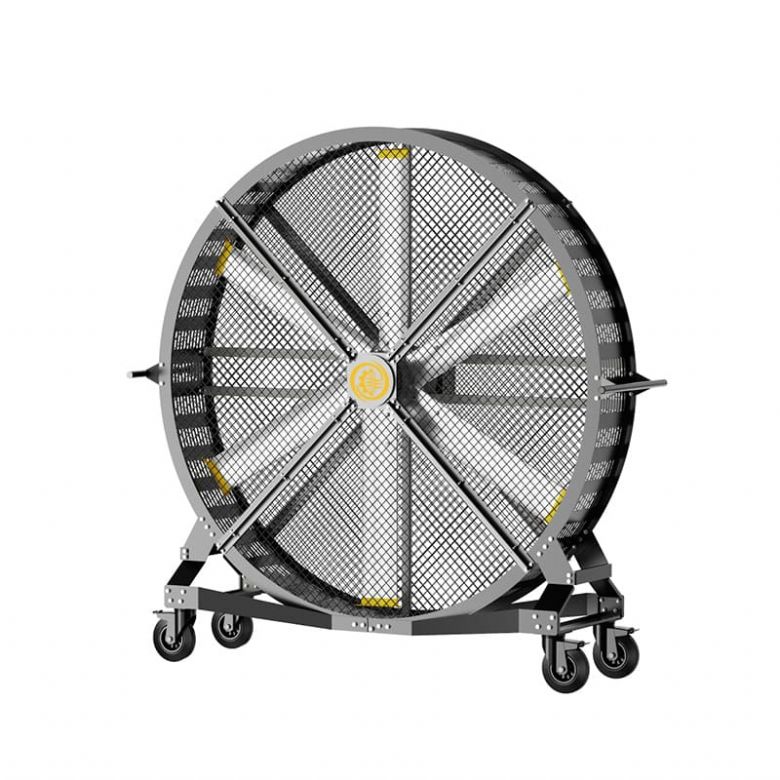

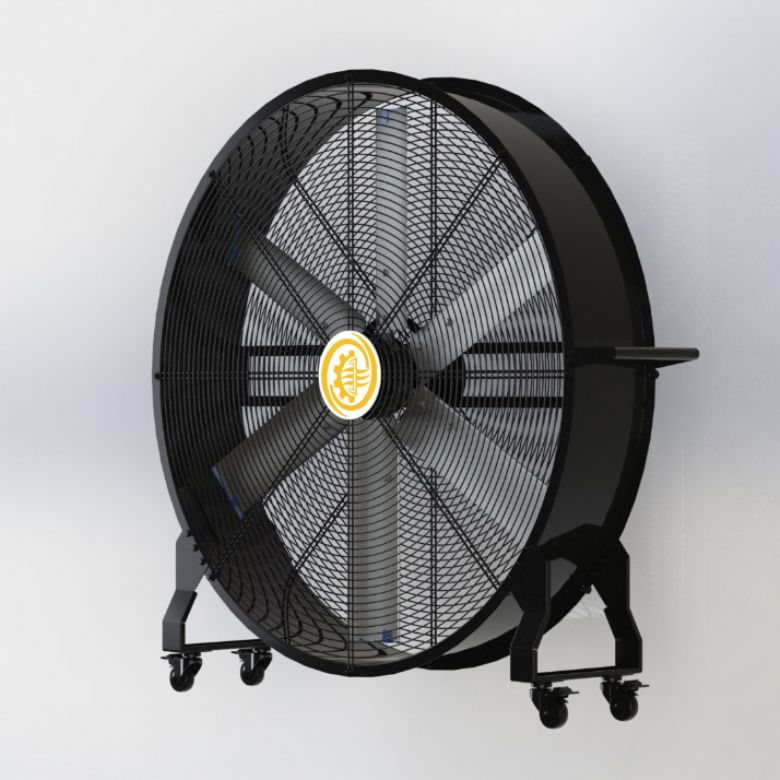

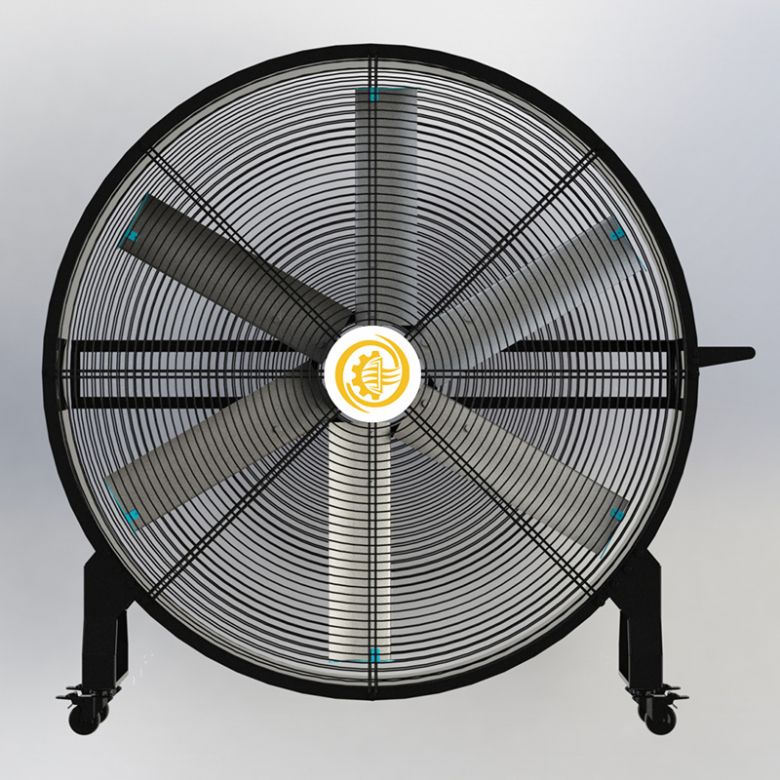

VIDAR HVLS FAN

CorTec portable mobile HVLS Fan provides flexibility and portability, allowing it to be moved to any location where ventilation is needed, which is ideal for places where ceiling fans cannot be installed or for temporary ventilation solutions. They balance temperatures, reduce humidity, and create a safer, more comfortable working environment.

Installation is quick and easy, and portable and mobile options are available for temporary or hard-to-reach spaces. Built with a heavy-duty iron frame and protective spray coating, Vidar HVLS fans resist rust and maintain structural integrity. Smart energy management systems are also available to help you optimize power use and reduce operational costs.

TECHNICAL PARAMETER

Model Motor power Size Max speed Air volume Coverage Area Fan weight Noise
CTYD-750-2 750W 2m 280RPM 82000m³/h 280 ​㎡ 120kgs 38dBA
CTYD-750-1.5 750W 1.5m 380RPM 55000m³/h 200 ㎡ 100kgs 38dBA

PRODUCT DESCRIPTION

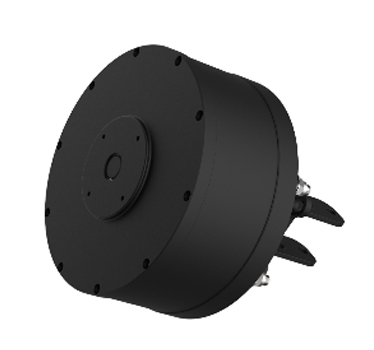

Driving Devic

CorTec High IP Grade PMSM motor, high water-proof motor, with NSK Bearing, Magnetic steel temperature resistant 180℃, which improves operational stability, reduces energy consumption and increases efficiency, reduces the risk of magnetic steel demagnetization, optimizes starting characteristics and commutation performance, and improves speed stability.

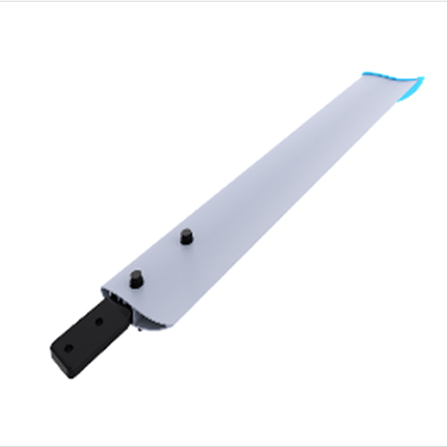

Fan Blade

CorTec fan blades are made of Aluminium alloy 6063-T5, which contains two connected reinforcing ribs and four unconnected reinforcing ribs, making the blades light and more resistant to breakage. When the blades are connected to the plug-in and fastened to the plug-in with nuts and caps, the two "E-shaped" reinforcing ribs have a certain deformation capacity. When the blades are subjected to the tightening force from top to bottom, the reinforcing ribs will bend slightly, which can ensure that the plug-in is tightly connected to the blades and the structural strength of the blades.

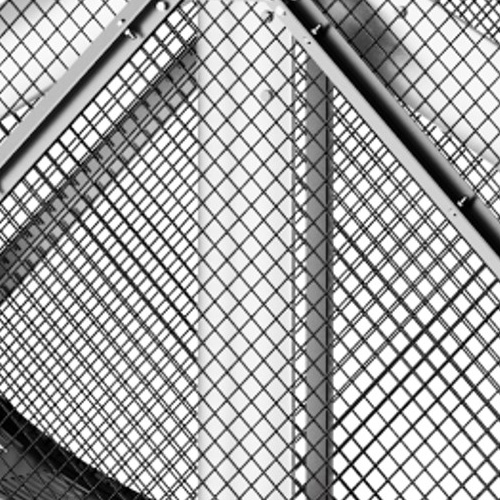

Strong Frame

CorTec uses strong iron frame with special spray paint so that it is not easy to rust can also protect the fan easily.

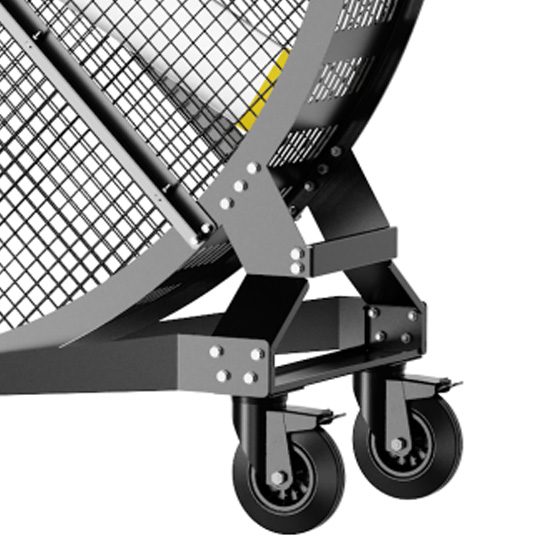

Rainforced Base And Wheel

The whole fan weighs nearly 100 kg, so the base must be able to support the whole fan. CorTec special design can totally hold up the fan, also we specially designed a brake, so that the fan can stay in any place to cool.
