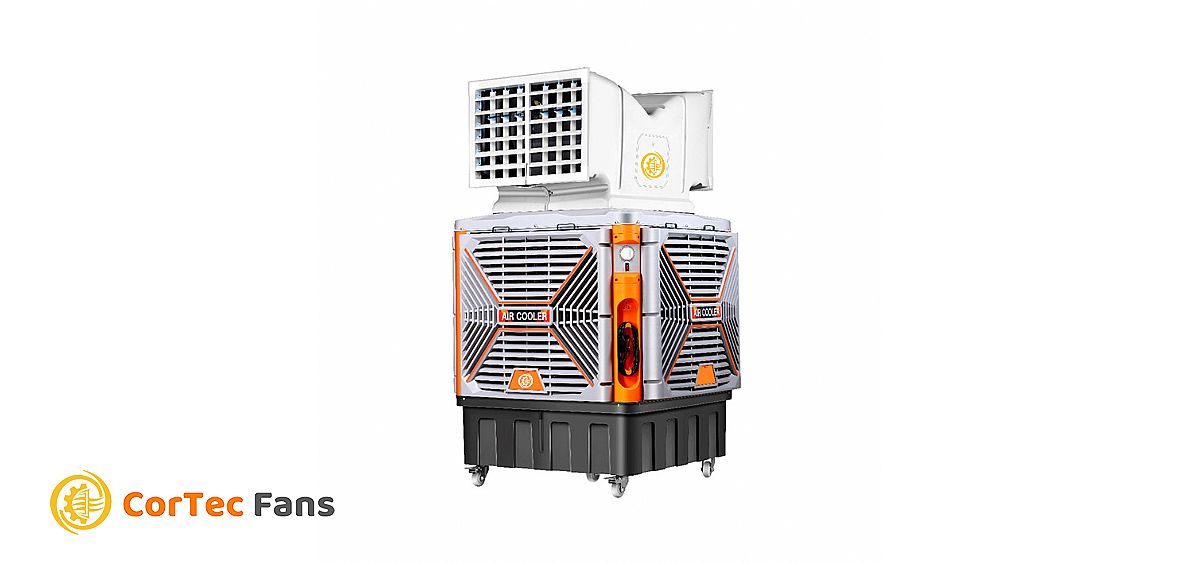

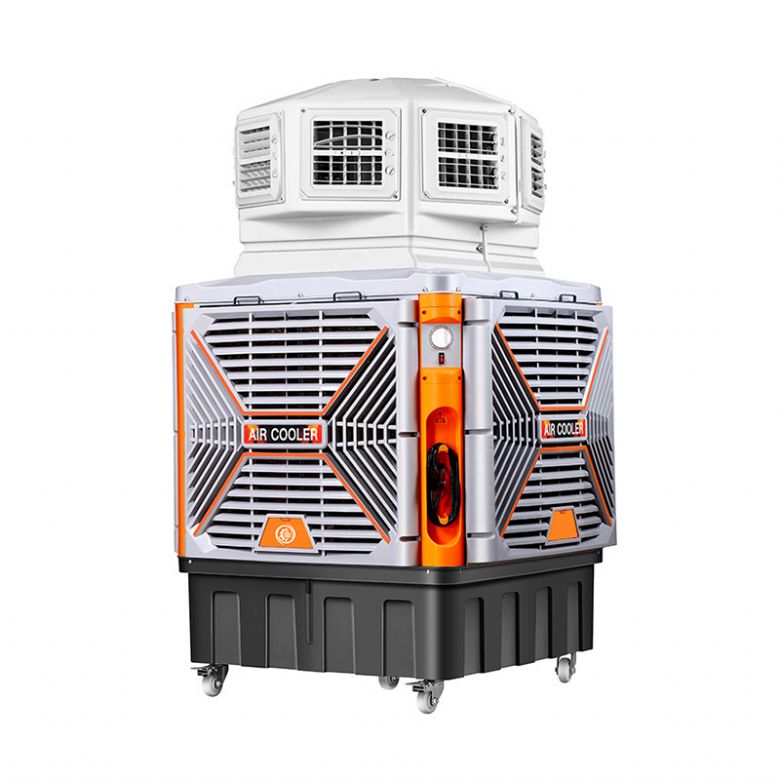

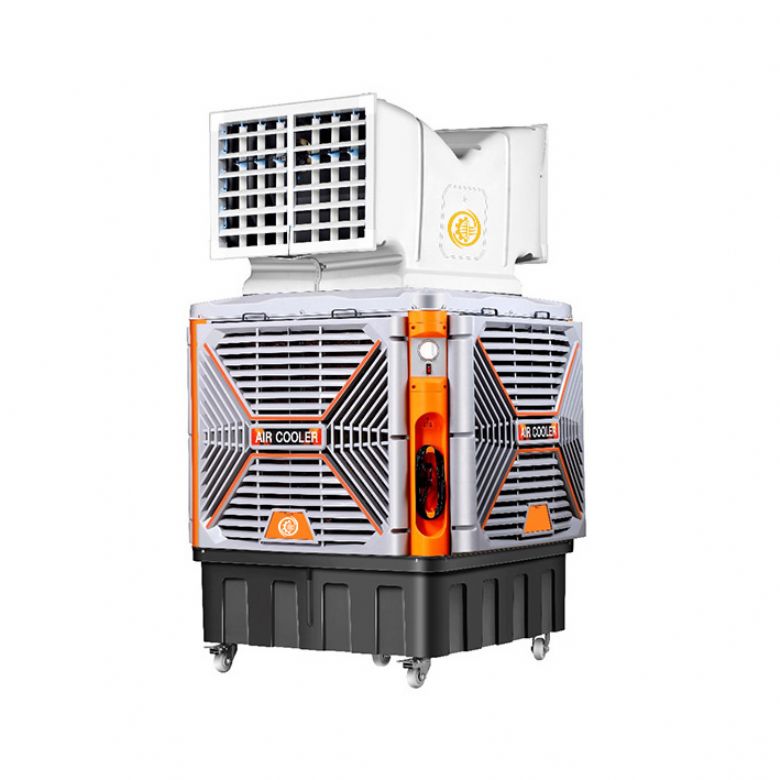

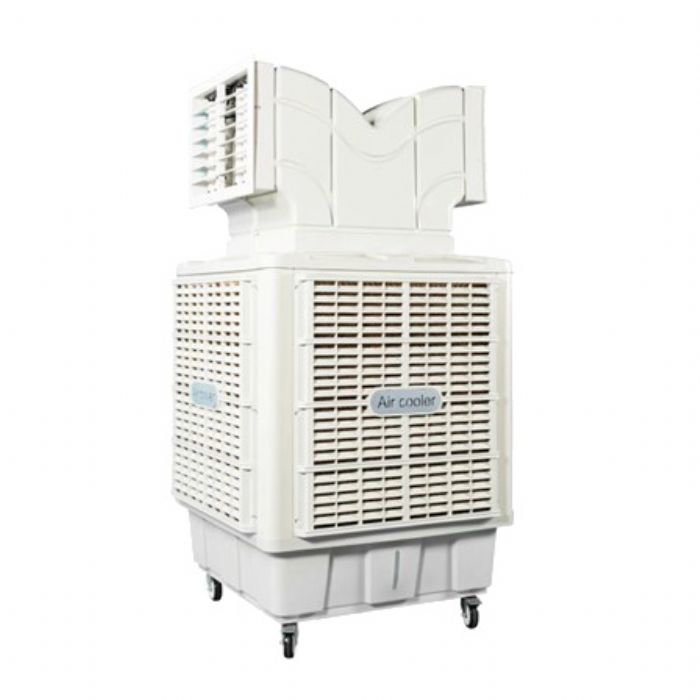

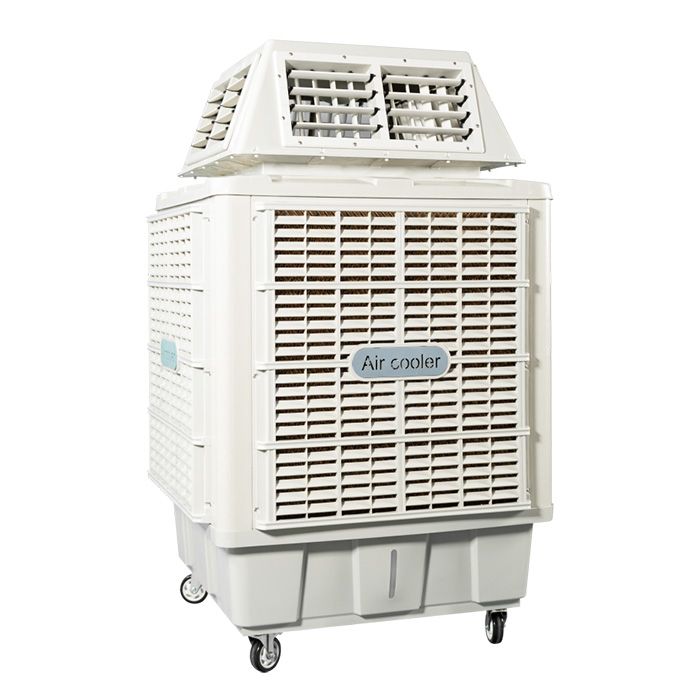

INDUSTRIAL AIR COOLER

CorTec Evaporative Industrial air cooler is a natural and highly efficient cooling method that uses the physical process of water evaporation to effectively absorb heat. The technology stands out for its outstanding efficiency and environmentally characteristics.

TECHNICAL PARAMETER

MODEL MOTOR POWER AIR FLOW VOLTAGE Water consumption WATER STORAGE WEIGHT SIZE Applicable area
CTEAC-1100/up 1.1KW 18000m³/H 220 5-10L/H 30L 55KGS 1010*1010*989mm 100-150㎡
CTEAC-1100/side 1.1KW 18000m³/H 220 5-10L/H 30L 55KGS 1010*1010*970mm 100-150㎡
CTEAC-1100/down 1.1KW 18000m³/H 220 5-10L/H 35L 55KGS 1108*1108*1020mm 100-150㎡
CTEAC-1100/outlet 1.1KW 18000m³/H 220 5-10L/H 180L 55KGS 928*928*1828mm 100-150㎡
CTEAC-1500/up 1.5KW 22000m³/H 220/380V 5-10L/H 30L 60KGS 1126*1126*989mm 100-150㎡
CTEAC-1500/side 1.5KW 22000m³/H 220/380V 5-10L/H 30L 60KGS 1126*1126*970mm 100-150㎡
CTEAC-1500/down 1.5KW 22000m³/H 220/380V 5-10L/H 35L 60KGS 1108*1108*1020mm 100-150㎡
CTEAC-1500/outlet 1.5KW 22000m³/H 220/380V 5-10L/H 260L 60KGS 1126*1126*1964mm 100-150㎡
CTEAC-2200/up 2.2KW 25000m³/H 220/380V 5-10L/H 35L 60KGS 1204*1204*1055mm 150-220㎡
CTEAC-2200/side 2.2KW 25000m³/H 220/380V 5-10L/H 35L 60KGS 1204*1204*1020mm 150-220㎡
CTEAC-2200/down 2.2KW 25000m³/H 220/380V 5-10L/H 35L 60KGS 1108*1108*1020mm 150-220㎡
CTEAC-2200/outlet 2.2KW 25000m³/H 220/380V 5-10L/H 280L 60KGS 1204*1204*2025mm 150-220㎡

PRODUCT DESCRIPTION

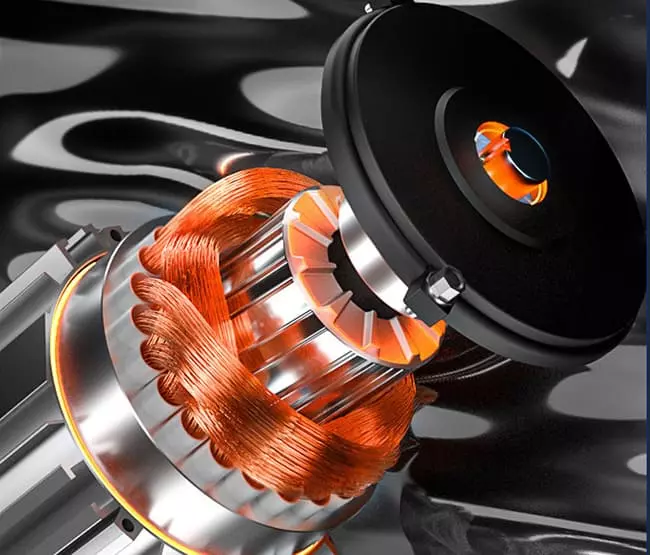

Fan Motor

High speed pure copper core motor, water-proof motor with long lifetime, better balance and stability, RPM is 1450 which high speed motor.

Body Case.

100% New PPmaterial, not recyelable, anti-UV, anti-corrosion, anti-aging, better heat-resistant performance:<60'C, 8 years warranty, more than l2 years lifetime.

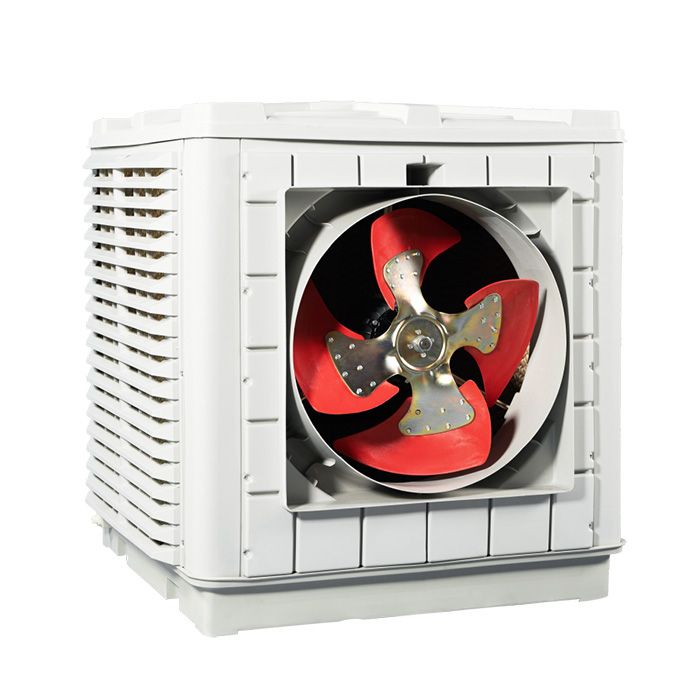

Fan Blades

Aluminium casting fan blades which is not easy to deform or break under heavy pressure. Its with large air volume, low noise and very stable.

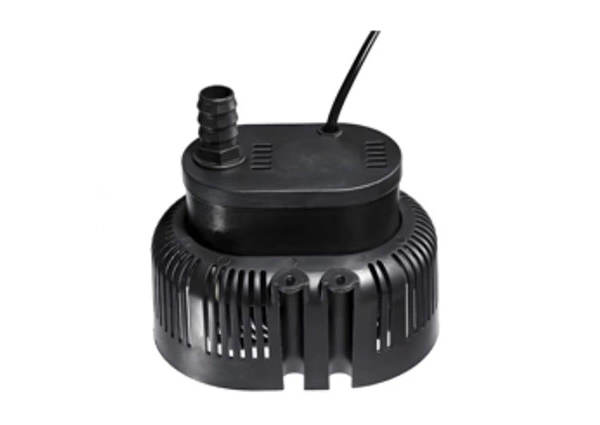

WATER PUMP

Ceramic shaft submersible pump, Corrosion resistance and efficient performance, 30000hours continuously working life.

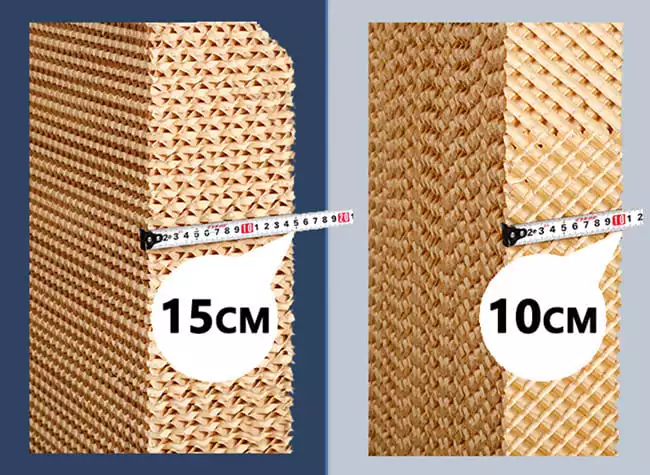

Water Curtain

Thickened water curtain make cooling speed faster, when working there is no water spatter, its not easy to deform, and long lifetime


CorTec Evaporative Air Cooler Ideal Applications

Workshops/Factories: Cooling production lines, assembly areas, machinery halls. Reduces heat stress, improves worker comfort/productivity, and combats dust.
Farms/Livestock Buildings: Critical for cooling poultry, dairy cows, pigs, etc., preventing heat stress, improving health/growth, and reducing mortality. Also useful in milking parlors and processing areas.
Warehouses & Distribution Centers:Provides cost-effective cooling and ventilation in large, high-ceiling spaces with heat build-up.
Greenhouses: Provides essential cooling and humidity control for optimal plant growth using fresh air, often more economically than other methods.
Bus/Train Stations & Waiting Areas: Offers affordable cooling and fresh air exchange in large, often semi-open public spaces.
Markets (Covered/Open-Air) & Event Tents: Provide cooling and ventilation for vendors and shoppers in expansive areas.
Gymnasiums & Sports Halls: Efficiently manages heat and humidity from activity.
Restaurants (Kitchens/Patios) & Workshops: Spot cooling for heat-intensive areas.


In Summary:
CorTec Evaporative industrial evaporative air cooler is a highly energy-efficient, cost-effective solution for cooling, humidifying (in dry air), and purifying large volumes of air in demanding industrial, agricultural, and commercial spaces. Its low noise operation (mute effect) and fresh air delivery make it particularly well-suited for the hot, dry periods common in many regions where the listed applications (workshops, farms, warehouses, etc.) operate. It excels where high airflow, dust control, low operating costs, and worker/animal comfort are priorities, provided the ambient humidity levels are compatible.
